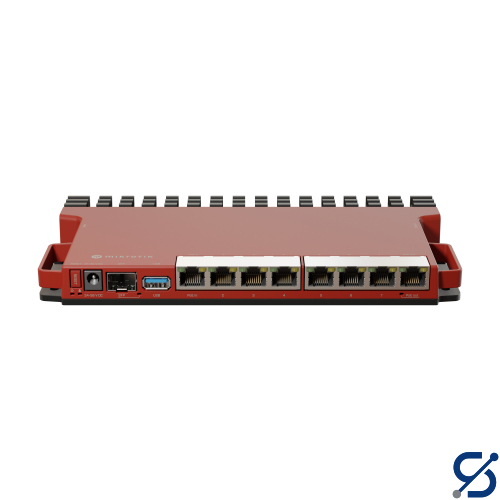

MikroTik L009UiGS-RM
- 800 MHz CPU
- 512 MB RAM
- RouterOS v7
- ARM 32bit
Specifications
Specification
Value
Product code
L009UiGS-RM
CPU
Dual-Core IPQ-5018 800 MHz
CPU architecture
ARM 64bit (RouterOS 32 bit)
Size of RAM
512 MB
RAM type
DDR3L
Storage
128 MB, NAND
Number of 1G Ethernet ports
8
Number of 1G SFP ports
1 (2.5G supported)
USB port
1 (3.0 type A)
Serial console port
RJ45
Switch chip model
88E6190
Dimensions
220 x 125 x 22 mm
Operating system
RouterOS v7, License level 5
Operating temperature
-40°C to +70°C
PoE-in
802.3af
PoE-Out*
Passive PoE
Max out per port output (DC input 24-30 V)
1 A
Max out per port output (DC input 30-56 V)
450 mA
Number of DC inputs
2 (PoE-in, DC jack)
PoE-in input Voltage
24-56 V
DC jack input Voltage
24-56 V
Max USB current
1.5 A
Power adapter nominal voltage
24 V
Power adapter nominal current
1.5 A
Max power consumption without attachments
8 W
Max power consumption
37 W
|
