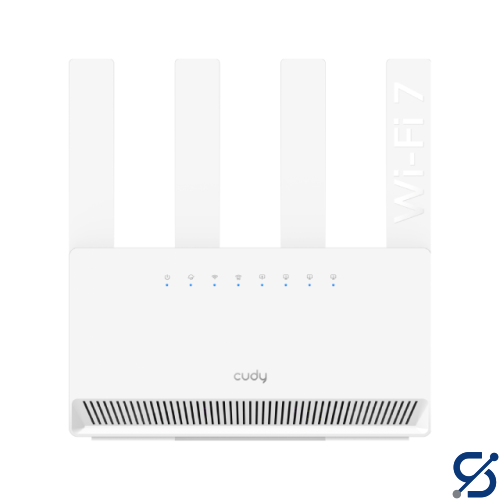

CUDY WR3600E Wi-Fi Mesh Router

Specification

Value

Model Version

WR3600E 1.0

CPU

2.0 GHz Quad-Core, ARM Cortex-A7

Memory/Storage (Flash/ROM)

128 MB (1 Gbit) NAND

Memory/Storage (DDR/RAM)

512 MB (4 Gbit) DDR3L

Wireless (5 GHz Wi-Fi Speed)

2882 Mbps

Wireless (2.4 GHz Wi-Fi Speed)

688 Mbps

Wireless (5 GHz Wi-Fi Streams)

2T2R (2×2 MIMO)

Wireless (2.4 GHz Wi-Fi Streams)

2T2R (2×2 MIMO)

Wi-Fi Antennas

4× Fixed

FEM or PA/LNA

• 5 GHz: 2× External
• 2.4 GHz: 2× Internal

Beamforming

True

Range Performance

Max: 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.

Wall Performance

Two wooden walls < 10 cm (4'')
One concrete wall < 20 cm (7'') or two concrete walls < 10 cm (4'')

Interfaces (Gigabit RJ45 Ports)

4

Ethernet Notes

1× WAN port, the rest are LAN ports

LED

• System
• Internet
• 2.4 GHz Wi-Fi
• 5 GHz Wi-Fi
• WAN
• LAN

Physical Buttons

• WPS Button
• Reset Button

Power Input

DC Jack

Power Methods

DC

DC Input

12V 1A

Power Adapter

Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC

Max Power Consumption (W)

8.5W

Reliability (Environment)

• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing

Certifications

FCC, CE

Mechanical (Installation)

Desktop

Dimension

209×48×220.4 mm
8.23×1.89×8.68 inches

Product Weight

339.8 g (11.99 oz.)

Package Content

• WR3600E
• Power Adapter
• Ethernet Cable
• Installation Guide
