Տեխնիկական բնութագիր
Specification
Value

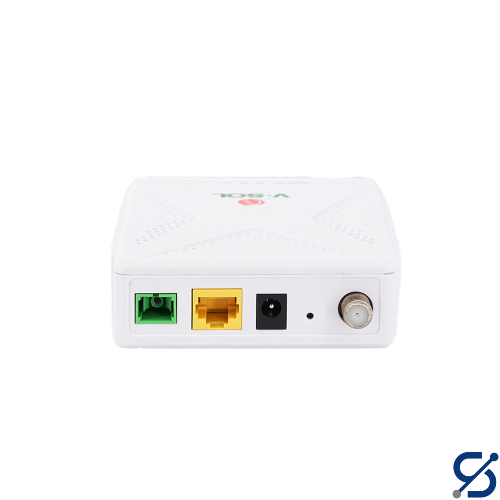

Brand
VSOL
Model
V2801D-1GT1
PON Port
1 × XPON Port (EPON PX20+ / GPON Class B+)
Connector
SC/APC Single Mode
TX Optical Power
0 ~ +4 dBm
RX Sensitivity
-27 dBm
Overload Optical Power
-3 dBm (EPON) / -8 dBm (GPON)
Transmission Distance
Up to 20 km
Wavelengths
TX: 1310 nm, RX: 1490 nm, CATV: 1550 nm
LAN Port
1 × Gigabit Ethernet (Auto-negotiation RJ45)
CATV Interface
RF Optical Power: 0 ~ -3 dBm, Frequency Range: 47 ~ 1000 MHz, Output Impedance: 75Ω, Output Level: ≥ 60 dBuV
AGC Support
Optional (V2 version)
MER
≥ 32 dB (at -14 dBm optical input)
PON Mode
XPON Dual Mode
Uplink Mode
Bridging and Routing
Power Supply
DC 12V / 0.5A
Power Consumption
≤ 4.2 W
Operating Temperature
-10°C to +55°C
Dimensions
100 × 92 × 30 mm
Weight
130 g
|
