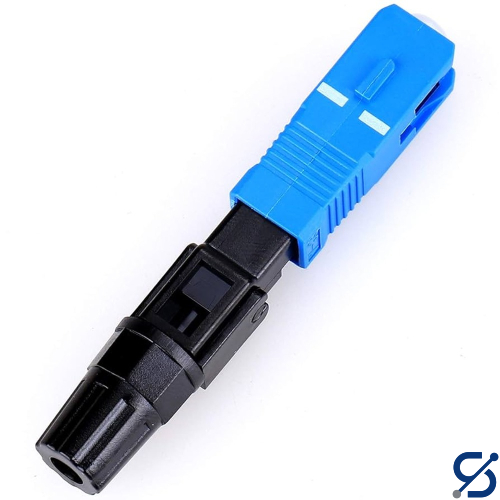

Optical Fast Connector SC/UPC simplex
- SC/UPC simplex connector
- Single-mode fiber compatible
- Low insertion loss
- High return loss
Տեխնիկական բնութագիր
Specification
Value
Connector Type
SC/UPC (Single-mode, simplex)
Fiber Type
Single-mode OS2, 9/125 µm, G.652.D
Insertion Loss (IL)
≤ 0.3 dB
Return Loss (RL)
≥ 50 dB
Operating Wavelength Range
1260–1650 nm
Jacket Material
Plastic / UV-resistant material
Operating Temperature
–20 °C … +70 °C
Storage Temperature
–40 °C … +85 °C
Minimum Bend Radius
≥ 30 mm (cable), ≈ 15 mm (fiber)
Tensile Strength
≈ 30 N
Color
Blue
|
