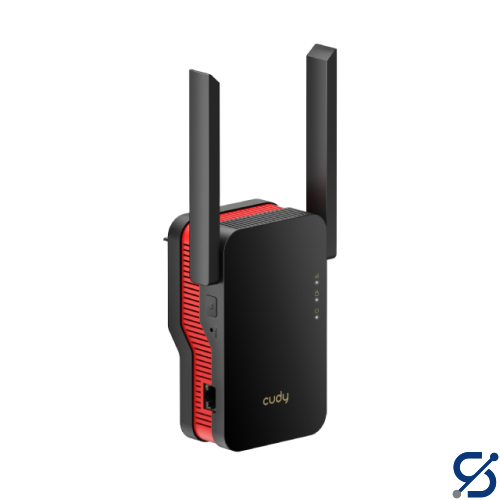

CUDY RE3000 Wi-Fi Mesh Repeater

Specification

Value

Model Version

RE3000 1.0

CPU

1.3 GHz Dual-Core, ARM Cortex-A53

Memory/Storage (Flash/ROM)

16 MB (128 Mbit) NOR

Memory/Storage (DDR/RAM)

256 MB (2 Gbit) DDR3

Wireless (5 GHz Wi-Fi Speed)

2402 Mbps

Wireless (2.4 GHz Wi-Fi Speed)

574 Mbps

Wireless (5 GHz Wi-Fi Streams)

3T3R (3×3 MIMO)

Wireless (2.4 GHz Wi-Fi Streams)

2T2R (2×2 MIMO)

Wi-Fi Antennas

2× Fixed, 1 × Internal

FEM or PA/LNA

• 5 GHz: 3× Internal
• 2.4 GHz: 2× Internal

Range Performance

Max: 150 m (492 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.

Wall Performance

Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')

Interfaces (Gigabit RJ45 Ports)

1

LED

• Signal Strength
• WPS
• Power

Physical Buttons

• WPS Button
• Reset Button

Power Input

AC Plug

Power Input Note

EU, US, UK Plug are Available

Power Methods

AC

AC

100V ~ 240V

Reliability (Environment)

Operating Temperature: 0 ℃ ~ 50 ℃ (32 ℉ ~ 122 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing

Certifications

FCC, CE

Mechanical (Install in a Daisy Chain)

Recommend to install less than 3 repeaters in a wireless chain.

Installation

Plug-In-Socket

Dimension

129.6×80×48.6 mm
5.1×3.15×1.91 inches

Product Weight

• EU: 279 g (9.84 oz.)
• UK: 282 g (9.95 oz.)
• US: 276 g (9.74 oz.)
