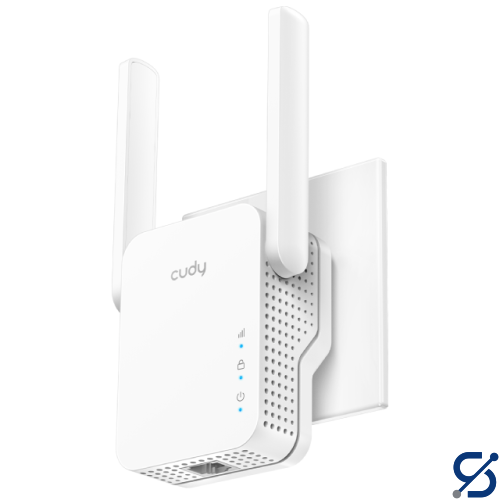

CUDY RE1200 Wi-Fi Mesh Repeater

Specification

Value

Model Version

RE1200 2.0

Flash/ROM

8 MB (64 Mbit ) NOR

DDR/RAM

64 MB (512 Mbit) DDR2

5 GHz Wi-Fi Speed

867 Mbps

2.4 GHz Wi-Fi Speed

300 Mbps

5 GHz Wi-Fi Streams

2T2R (2×2 MIMO)

2.4 GHz Wi-Fi Streams

2T2R (2×2 MIMO)

Wi-Fi Antennas

2× Fixed

FEM or PA/LNA

• 5 GHz: 2× Internal
• 2.4 GHz: 2× Internal

Range Performance

Max: 150 m (492 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.

Wall Performance

Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')

10/100 Mbps RJ45 Ports

1

LED

• Signal Strength
• WPS
• Power

Physical Buttons

• WPS Button
• Reset Button

Power Input

AC Plug

Power Input Note

EU, US, UK plug are available on corresponding region versions

Power Methods

AC

AC

100V ~ 240V

Reliability (Environment)

• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing

Certifications

FCC, CE

Installation

Plug-In-Socket

Dimension

80×60×38 mm
3.15×2.36×1.5 inches
