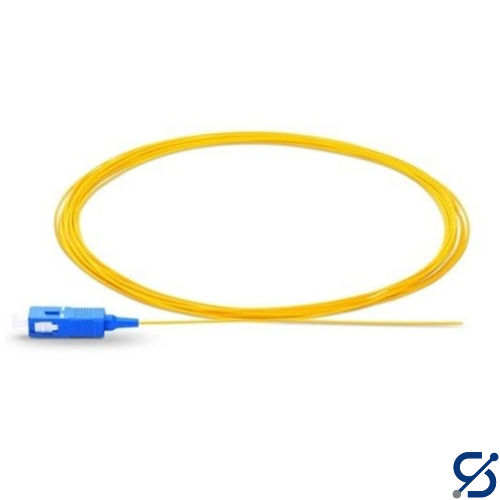

SC/UPC pigtail 1.5m 0.9mm
- Single-mode fiber
- SC/UPC connector (pigtail)
- Length: 1.5 m
- Jacket: 0.9 mm
- Suitable for terminations, indoor LAN
Տեխնիկական բնութագիր
Specification
Value
Connector Type
SC/UPC (Single-mode)
Fiber Type
OS2, 9/125 µm Single-mode, G.652.D
Insertion Loss (IL)
≤ 0.3 dB
Return Loss (RL)
≥ 50 dB
Operating Wavelength Range
1260–1650 nm
Fiber Diameter
≈ 0.9 mm
Jacket Material
LSZH
Operating Temperature
–20 °C … +70 °C
Storage Temperature
–40 °C … +85 °C
Minimum Bend Radius
≥ 15 mm
Tensile Strength
≈ 30 N
Color
Yellow
|
