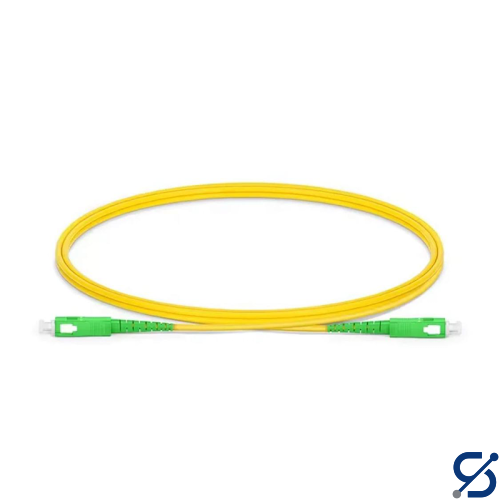

Patch cord SC/APC-SC/APC 2m 3.0mm
-
Single-fiber SM G652D
-
SC/APC connectors
-
LSZH jacket, 3 mm, indoor use
-
Low reflection, minimal signal loss
-
Length: 2 m
Տեխնիկական բնութագիր
Specification
Value
Connector Type
SC/APC (Single-mode)
Fiber Type
OS2, 9/125 µm Single-mode, G.652.D
Insertion Loss (IL)
≤ 0.3 dB
Return Loss (RL)
≥ 55 dB
Operating Wavelength Range
1260–1650 nm
Cable Diameter
≈ 3 mm
Jacket Material
LSZH
Operating Temperature
–20 °C … +70 °C
Storage Temperature
–40 °C … +85 °C
Minimum Bend Radius
≥ 30 mm (cable), ≈ 15 mm (fiber)
Tensile Strength
≈ 30 N
Color
Green
|
