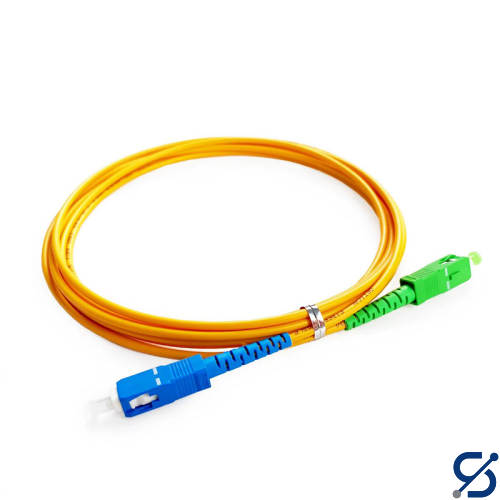

Patch Cord SC/UPC-SC/APC 2m 2.0mm
- Single-mode fiber optic patch cord
- SC/UPC to SC/APC connectors
- Jacket: 2.0 mm
- Length: 2 m
- Low-loss, Stable
- Applications: Telecom, FTTH, Data Networks
Տեխնիկական բնութագիր
Specification
Value
Connector Type
SC/UPC – SC/APC (Single-mode)
Fiber Type
OS2, 9/125 µm Single-mode, G.652.D
Insertion Loss (IL)
≤ 0.3 dB
Return Loss (RL)
≥ 50 dB (UPC), ≥ 55 dB (APC)
Operating Wavelength Range
1260–1650 nm
Cable Diameter
≈ 2.0 mm
Jacket Material
LSZH
Operating Temperature
–20 °C … +70 °C
Storage Temperature
–40 °C … +85 °C
Minimum Bend Radius
≥ 30 mm (cable), ≈ 15 mm (fiber)
Tensile Strength
≈ 30 N
Color
Yellow
|
