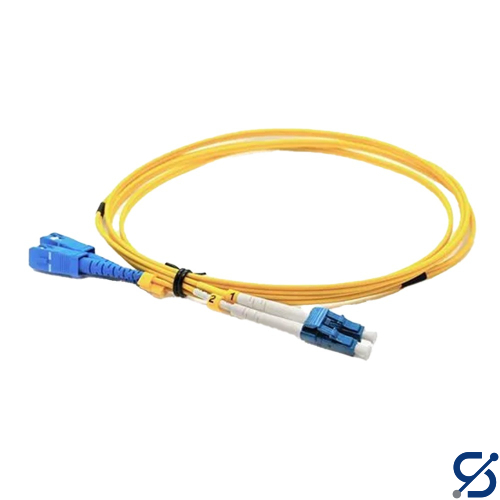

Patch Cord LC/UPC-LC/UPC duplex 3m 2.0mm
- Duplex single-mode patch cord
- LC/UPC - LC/UPC connectors
- Jacket: 2 mm, indoor use
- Applications: Telecom, LAN, Data Centers
- Length: 3 m
Տեխնիկական բնութագիր
Specification
Value
Connector Type
LC/UPC – LC/UPC Duplex (Single-mode)
Fiber Type
OS2, 9/125 µm Single-mode, G.652.D
Insertion Loss (IL)
≤ 0.3 dB
Return Loss (RL)
≥ 50 dB
Operating Wavelength Range
1260–1650 nm
Cable Diameter
≈ 2 mm
Jacket Material
LSZH
Operating Temperature
–20 °C … +70 °C
Storage Temperature
–40 °C … +85 °C
Minimum Bend Radius
≥ 30 mm (cable), ≈ 15 mm (fiber)
Tensile Strength
≈ 30 N
Color
Aqua
|
