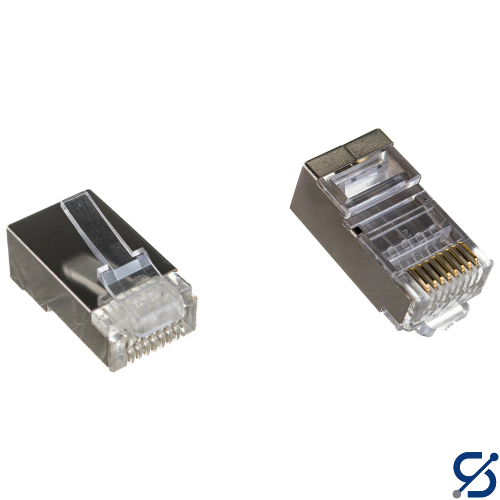

Network Connector Cat6a FTP
- Type: Cat6a FTP / STP (Shielded)
- Speed: Up to 10 Gbps (10-Gigabit Ethernet)
- Frequency: 500 MHz
- Contacts: Gold-plated for maximum conductivity and corrosion resistance
- Application: Ideal for high-speed LAN networks, switches, routers, and servers
Տեխնիկական բնութագիր
Specification
Value
Product Type
RJ45 Modular Plug
Performance Category
Cat6a (Category 6A)
Shielding Type
FTP / STP (Shielded - Metal Housing)
Data Transfer Rate
Up to 10 Gbps (10-Gigabit Ethernet)
Bandwidth Frequency
Up to 500 MHz
Position/Conductor
8P8C (8 Positions, 8 Contacts)
Contact Plating
Gold-plated (typically 3µ" to 50µ") for superior conductivity
Housing Material
Polycarbonate (PC) with nickel-plated brass shield
Compatible Cable Type
Solid and Stranded Cat6a FTP LAN cables
Supported Wire Gauge
22 AWG - 24 AWG (depending on insulator diameter)
Installation
Crimp-on termination
|
