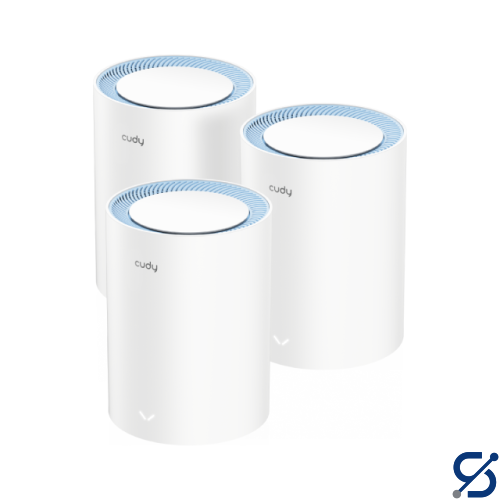

CUDY M1200 (3-Pack) Wi-Fi Mesh Solution

Specification

Value

Model Version

M1200 1.0

CPU Details

580 MHz Single-Core, MIPS24KEC

Flash/ROM

16 MB (128 Mbit) NOR

DDR/RAM

128 MB (1 Gbit) DDR3

5 GHz Wi-Fi Speed

867 Mbps

2.4 GHz Wi-Fi Speed

300 Mbps

5 GHz Wi-Fi Streams

2T2R (2×2 MIMO)

2.4 GHz Wi-Fi Streams

2T2R (2×2 MIMO)

Wi-Fi Antennas

2× Internal

FEM or PA/LNA

• 5 GHz: 2× Internal
• 2.4 GHz: 2× Internal

Beamforming

True

Range Performance

Max: 170 m (558 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.

Wall Performance

Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')

Indoor Coverage Reference

2 Pack: 160 m² (1700 sq ft)
3 Pack: 220 m² (2400 sq ft)
Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of two obstacles to each room.

10/100 Mbps RJ45 Ports

2

Ethernet Notes

Port 1 is the WAN port by default. All ports are LAN ports in Mesh satellite mode

LED

System

Physical Buttons

• WPS Button
• Reset Button

Power Input

DC Jack

Power Methods

DC

DC Input

12V 1A

Power Adapter

Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC

Max Power Consumption (W)

8W

Reliability (Environment)

• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing

Certifications

FCC, CE

Installation

Desktop

Dimension

Φ110×154.5 mm

Product Weight

• 2-Pack | EU: 586 g
• 3-Pack | EU: 879 g
• 1-Pack | EU: 293 g
