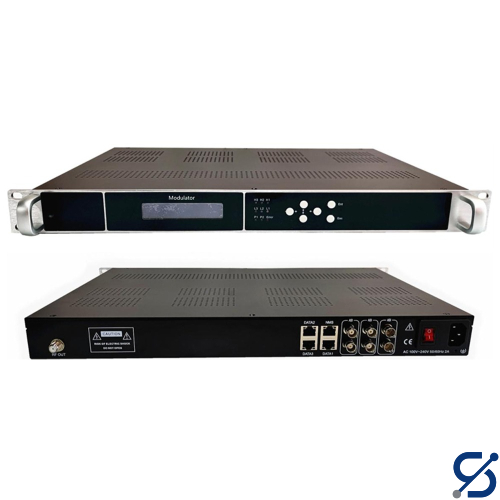

IP Modulator 24 DVB-T
- IP Modulator, 24× DVB‑T carriers
- 128×3 IP inputs
- Supports multiplexing and DVB‑T modulation
- Web-based management
- Versatile input options for digital TV broadcasting
Տեխնիկական բնութագիր
Specification
Value
Standard
DVB-T EN300744
FFT Mode
2K
Bandwidth
6M / 7M / 8M
Constellation
QPSK, 16QAM, 64QAM
RF Output
24 DVB-T carriers, 50~900MHz, -24dBm~0dBm
MER
≥40 dB
Guard Interval
1/4, 1/8, 1/16, 1/32
FEC
1/2, 2/3, 3/4, 5/6, 7/8
IP Input
3×128 IP (SPTS/MPTS) over UDP & RTP, RJ45, 1000M/100M, Unicast/Multicast
ASI Input
6 ASI inputs, DVB standard, BNC connector
Control
LCD/Keyboard & Web-based NMS
Software Upgrade
Ethernet
Dimensions (W×D×H)
482 × 340 × 45 mm (1U)
Operating Temperature
0~45°C
Storage Temperature
-20~80°C
Power Supply
AC 110V±10% / AC 220V±10%, 50/60Hz
|
