main product photo

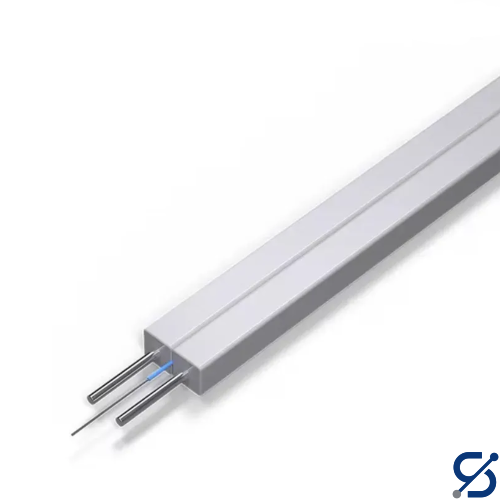

FTTH indoor drop cable GJXH 1 core white

25,00 ֏
Առկա է
SKU
SP000029
- +
Դարձնել նախընտրելի

  • 1× SM G657A1 fiber

  • 2× FRP rods (0.5 mm)

  • LSZH outer sheath, white

  • Ø ≈ 2.0 ± 0.2 mm

  • Tensile strength ≥1000 N

  • Bend radius ≥10× cable diameter

  • Temp. range -40°C ~ +70°C

  • Packaging: 1 km roll

Տեխնիկական բնութագիր
Specification
Value
Number of Cores
1
Fiber Type
Single Mode (SM) G657A1
Outer Sheath
LSZH (Low Smoke Zero Halogen)
Reinforcement Wires
2 x FRP (0.5mm)
Core Structure
Tight buffer
Outer Diameter
≈ 2.0 ± 0.2 mm
Core Material
LSZH
Inner Reinforcement Material
2 x FRP rods
Operating Temperature
-40°C ~ +70°C
Storage Temperature
-40°C ~ +70°C
Minimum Bend Radius
≥10x Cable Diameter
Tensile Strength
≥1000 N
Impact Resistance
≥10 times (1500 N×10)
Flexibility During Movement
Good
Weight (Approx.)
≈ 20–30 kg/km
Packaging
1 km drum (roll)
Usage Environment
Indoor
Applicable Standards
ITU-T G.657A1, IEC 60793, IEC 60794
