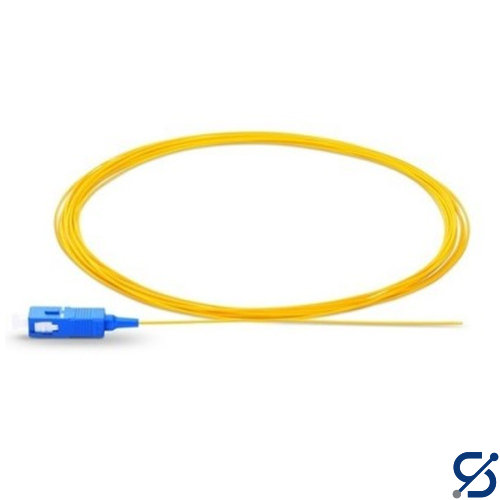

SC/UPC pigtail 1.5m 3.0mm
- Single-mode fiber G652D
- SC/UPC connector (pigtail)
- Length: 1.5 m 3 mm
- Applications: FTTH, Data Centers, Optical Network Connections
Տեխնիկական բնութագիր
Specification
Value
Connector Type
SC/UPC (Single-mode)
Fiber Type
OS2, 9/125 µm Single-mode, G.652.D
Insertion Loss (IL)
≤ 0.3 dB
Return Loss (RL)
≥ 50 dB
Operating Wavelength Range
1260–1650 nm
Cable Diameter
≈ 3 mm
Jacket Material
LSZH
Operating Temperature
–20 °C … +70 °C
Storage Temperature
–40 °C … +85 °C
Minimum Bend Radius
≥ 30 mm (cable), ≈ 15 mm (fiber)
|
