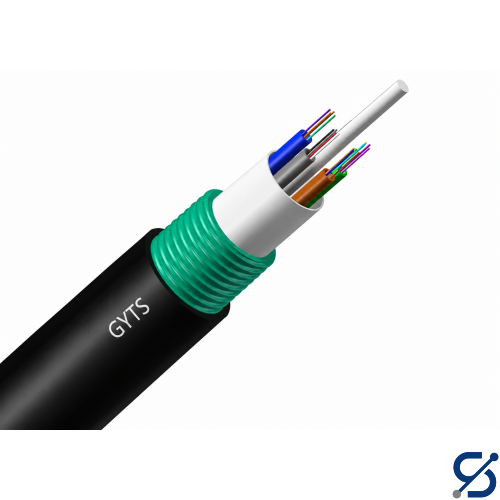

Fiber Optic Armoured G652D GYTS 48B1.3
- Single-mode fiber, 48 cores
- Aluminum Tape, Steel Tape
- Wooden Drum
- Outdoor Aerial Application
- Loose Tube 4*12
- Length: 2 km/roll
Տեխնիկական բնութագիր
Specification
Value
Number of Cores
48
Fiber Type
Single Mode (SM) G.652D
Cable Type
GYTS (Steel Tape Armored)
Outer Jacket
PE (Polyethylene)
Armored Layer
Corrugated Steel Tape
Core Structure
Loose Tube, filled with water-blocking gel
Outer Jacket Color
Black
Cable Diameter
Ø 10.5 mm ± 0.5 mm
Sheath Material
PE
Ripcord
1 pc
Tensile Strength
≥ 1500 N
Crush Resistance
≥ 3000 N/100 mm
Operating Temperature
-40°C ~ +70°C
Storage Temperature
-40°C ~ +70°C
Minimum Bending Radius
≥15× cable diameter (during installation), ≥10× (static)
Packaging
2 km wooden drum
Usage Environment
Underground / Duct installation
Compliance Standards
ITU-T G.652D, IEC 60793, IEC 60794, YD/T 901
|
