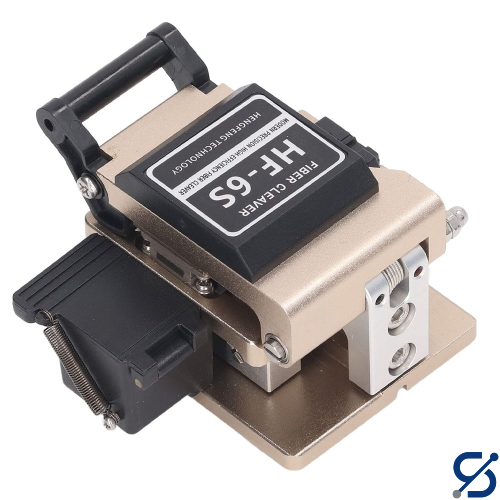

Fiber cleaver HF-6S
-
Fiber Type: Single-mode
-
Cladding Diameter: 125 µm
-
Coating Diameter: 0.25 mm – 0.9 mm
-
Cleave Length: 6–12 mm (0.25 mm coating), 10–20 mm (0.9 mm coating)
-
Cleave Angle: ≤ 0.5°
Տեխնիկական բնութագիր
Specification
Details
Fiber Type
Single-mode
Cladding Diameter
125 µm
Coating Diameter
0.25 mm – 0.9 mm
Cleave Length
6–12 mm (0.25 mm coating), 10–20 mm (0.9 mm coating)
Cleave Angle
≤ 0.5°
Blade Life
Up to 36,000 cleaves
Blade Adjustments
Rotational and height adjustments
Fiber Holder
Compatible with 0.25 mm and 0.9 mm fiber holders
Scrap Collector
Optional (not included in all models)
Operating Temperature
Typically 0°C to 50°C
Dimensions
63 mm (W) × 65 mm (D) × 63 mm (H)
Weight
430 g (without scrap collector), 475 g (with scrap collector)
|
