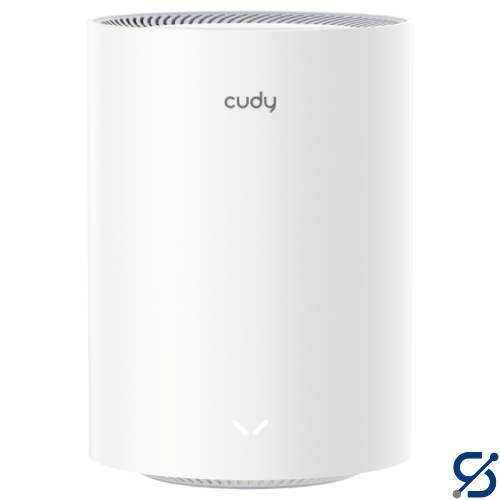

CUDY M3000 (1-Pack) Wi-Fi 6 Mesh Solution

Specification

Value

Model Version

M3000 2.0

CPU Details

1.3 GHz Dual-Core, ARM Cortex-A53

Flash/ROM

128 MB (1 Gbit) NAND

DDR/RAM

256 MB (2 Gbit) DDR3

5 GHz Wi-Fi Speed

2402 Mbps

2.4 GHz Wi-Fi Speed

574 Mbps

5 GHz Wi-Fi Streams

2T2R (2×2 MIMO)

2.4 GHz Wi-Fi Streams

2T2R (2×2 MIMO)

Wi-Fi Antennas

5× Internal

FEM or PA/LNA

• 5 GHz: 3× Internal
• 2.4 GHz: 2× Internal

Beamforming

True

Range Performance

Max: 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.

Wall Performance

Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')

Indoor Coverage Reference

2 Pack: 200 m² (2100 sq ft)
3 Pack: 270 m² (2900 sq ft)
Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room. You may see different figures on the older retail box which is based on test taken in wooden structure, while the figures on the website is taken from a concrete structure.

2.5G RJ45 Ports

1

Gigabit RJ45 Ports

1

Ethernet Notes

The 2.5G port is the WAN port, the Gigabit port is LAN port

LED

• System
• Speed/Link/ACT of Ethernet Port

Physical Buttons

• WPS Button
• Reset Button

Power Input

DC Jack

Power Methods

DC

DC Input

12V 1A

Power Adapter

Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC

Max Power Consumption (W)

11.5W

Reliability (Environment)

• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing

Certifications

FCC, CE

Installation

Desktop

Dimension

Φ110×154.5 mm
Φ4.33×6.08 inches
