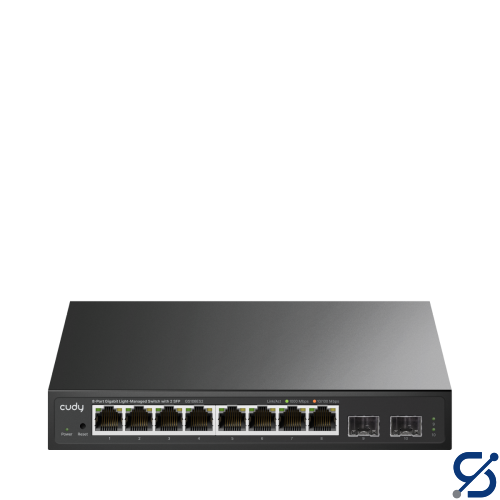

CUDY GS108ES2 8-Port Gigabit Easy-Managed Switch with 2 SFP
- 8× GbE, 2× 1.25G SFP
- Web Management, SNMP
- VLAN (802.1Q/MTU/Port-Based)
- QoS (802.1p/DSCP/Port-Based)
- Port Mirror, Static Aggregation, etc
- Loop Detection and Prevention
- DHCP Snooping, IGMP Snooping
Տեխնիկական բնութագիր
Specification
Value
Model Version
GS108ES2 1.0
1.25G SFP Slots
2
Gigabit RJ45 Ports
8
Extend Mode Ports
Configurable
VLAN Mode Ports
Configurable
LED
- Power
- Speed/Link/ACT of Each Ethernet Port
Power Interfaces
DC Jack
Copper Speed and Distance
- Cat. 3 or higher cable: 100 meters at 10 Mbps
- Cat. 5 or higher cable: 100 meters at 100 Mbps
- Cat. 5e or higher cable: 100 meters at Gigabit
- Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note
250-meter transmission is available when the port speed is set at 10 Mbps in the software.
MAC Address Table
4096
Max Switching Capacity
21 Gbps
Max Forwarding Rate
14.88 Mpps
Jumbo Frame
15 KB
Packet Buffer
1.5 Mbit
Power Methods
AC
Power Input
12V=1A
Switching - 802.3 Protocols
- 802.3x Flow Control
- 802.3i 10BASE-T
- 802.3u 100BASE-TX
- 802.3ab 1000BASE-T
- 802.3z 1000BASE-X
- 802.3az Power Saving
802.1 Protocols
- 802.1p: LAN Layer 2 QoS/CoS
- 802.1q: VLAN Bridge Operation
Port Management
- Port On/Off
- Port Negotiation Speed
- Port Trunk (Static Aggregation)
- Port Mirror
- Data Rate Limit
- Jumbo Frame Settings
- Storm Control
- Traffic Monitor
- MAC Address Management
- EEE (802.3az)
L2 Features
- IGMP Snooping
- Loop Prevention
- DHCP Snooping
- LLDP Config and Neighbors
- MTU VLAN
- Port-Based VLAN
- 802.1Q VLAN
- DSCP QoS
- 802.1p QoS
- Port-Based QoS
Grounding Methods
- Three-Prong Plug
- Grounding Point
EMS
IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level X Surge: Power: DM 4kV, CM 4kV; RJ45: CM 6kV
Firmware Upgrade
Local Upgrade
Reliability
Backup and Restore
Diagnostic Tools
- Cable Status/Length Diagnosis
- Ping
|
