Specification
Value

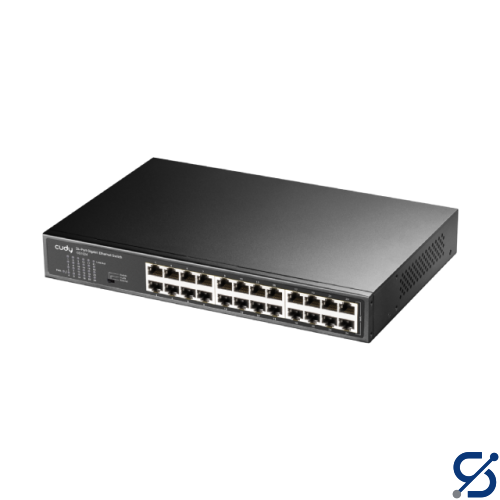

Model Version
GS1024 4.0
Gigabit RJ45 Ports
24
Shielded RJ45 Port
True
Extend Mode Ports
#1~#22
VLAN Mode Ports
#1~#22
Interfaces - LED
- Power
- Speed/Link/ACT of Each Ethernet Port
Power Input
AC Inlet
Physical Buttons
VLAN/Default/Extend DIP Switch
Copper Speed and Distance
- Cat. 3 or higher cable: 100 meters at 10 Mbps
- Cat. 5 or higher cable: 100 meters at 100 Mbps
- Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note
250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
MAC Address Table
8192
Max Switching Capacity
48 Gbps
Max Forwarding Rate
35.712 Mpps
Jumbo Frame
15 KB
Packet Buffer
4 Mbit
Basic Power Saving
True
Power Methods
AC
Power Input
90-260V~ 50/60Hz
Max Power Consumption
11 W
Idle Power Consumption
6.8 W
Switching - 802.3 Protocols
- 802.3x Flow Control
- 802.3i 10BASE-T
- 802.3u 100BASE-TX
- 802.3ab 1000BASE-T
Switching - 802.1 Protocols
802.1p: LAN Layer 2 QoS/CoS
L2 Features
- IGMP Snooping
- Loop Prevention
- Loop Detection
- DSCP QoS
- 802.1p QoS
Grounding Methods
- Three-Prong Plug
- Grounding Point
EMS
IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
Reliability - Environment
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Mechanical - Dimension
270×118×44 mm
10.63×4.65×1.73 inches
Mechanical - Product Weight
1071.0 g (37.78 oz.)
Mechanical - Casing Material
Metal
Mechanical - Installation
- Desktop
- Rackmount via Brackets
