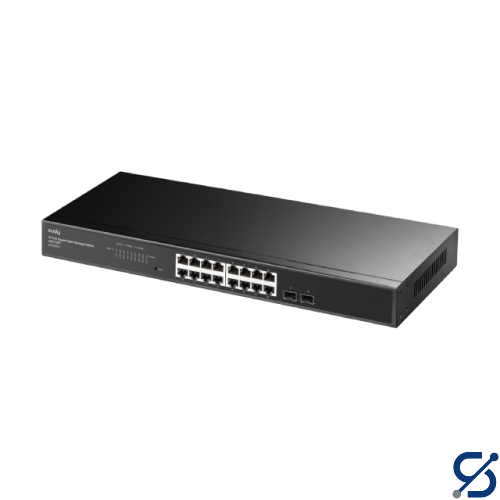

CUDY GS1016ES2 16-Port Gigabit Switch

Specification

Value

Model Version

GS1016ES2 1.0

1.25G SFP Slots

2

Gigabit RJ45 Ports

16

Shielded RJ45 Port

True

Extend Mode Ports

Configurable

VLAN Mode Ports

Configurable

LED

• Power
• Speed/Link/ACT of Each Ethernet Port

Power Interfaces

AC Inlet

Physical Buttons

Reset Button

Copper Speed and Distance

• Cat. 3 or higher cable: 100 meters at 10 Mbps
• Cat. 5 or higher cable: 100 meters at 100 Mbps
• Cat. 5e or higher cable: 100 meters at Gigabit
• Cat. 5e or higher cable: 250 meters at 10 Mbps

Copper Speed and Distance Note

250-meter transmission is available when the port speed is set at 10 Mbps in the software.

MAC Address Table

8192

Max Switching Capacity

36 Gbps

Max Forwarding Rate

26.78 Mpps

Jumbo Frame

15 KB

Packet Buffer

4 Mbit

Power Methods

AC

Power Input

100-240V~ 50/60Hz

Max Power Consumption

7.8W

Idle Power Consumption

4.5W

Switching - 802.3 Protocols

• 802.3x Flow Control
• 802.3i 10BASE-T
• 802.3u 100BASE-TX
• 802.3ab 1000BASE-T
• 802.3z 1000BASE-X
• 802.3az Power Saving

802.1 Protocols

• 802.1p: LAN Layer 2 QoS/CoS
• 802.1q: VLAN Bridge Operation
• 802.1ab: LLDP/LLDP-MED

Port Management

• Port On/Off
• Port Negotiation Speed
• Port Trunk (Static Aggregation)
• Port Mirror
• Data Rate Limit
• Jumbo Frame Settings
• Storm Control
• Traffic Monitor
• MAC Address Management
• EEE (802.3az)

Port Mirror Sessions

4

Port Trunk Groups

4

Max Port Num per Port Trunk Group

8

L2 Features

• IGMP Snooping
• Loop Prevention
• DHCP Snooping
• LLDP Config and Neighbors
• MTU VLAN
• Port-Based VLAN
• 802.1Q VLAN
• DSCP QoS
• 802.1p QoS
• Port-Based QoS

Grounding Methods

• Three-Prong Plug
• Grounding Point

EMS

IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level X Surge: Power: DM 4kV, CM 4kV; RJ45: CM 6kV

Control Methods

• Config Web Page
• SNMP V1/V2

Firmware Upgrade

Local Upgrade

Reliability

Backup and Restore

Diagnostic Tools

• Cable Status/Length Diagnosis
• Ping

Environment

Operating Temperature: 0~40 ℃ (32~104 ℉)
Storage Temperature: -40~70℃ (-40~158 ℉)
Operating Humidity: 10~90% non-condensing
Storage Humidity: 10~95% non-condensing

Dimension

440×180×44 mm
17.32×7.09×1.73 inches

Product Weight

1691.5 g (59.67 oz.)

Casing Material

Metal

Installation

• Desktop
• Rackmount via Brackets (Brackets not included in the box)
