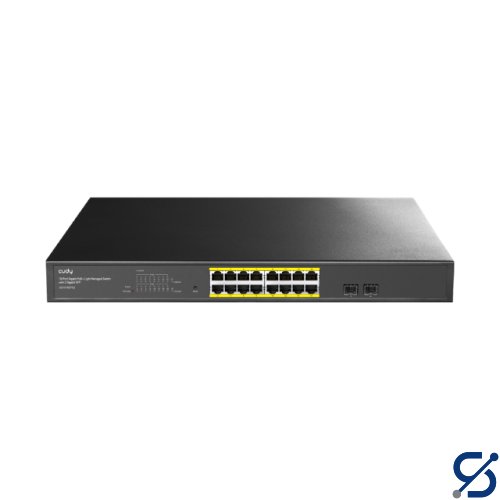

CUDY GS1016EPS2 16-Port Gigabit PoE+ Switch

Specification

Value

Model Version

GS1016EPS2 1.0

1.25G SFP Slots

2

Gigabit RJ45 Ports

16

 Gigabit RJ45 PoE Ports

#1~#16

Max Power on a Single PoE Port

30W

PoE Port Notes

The PoE ports comply with IEEE 802.3at/af standards.

PoE Priority

Configurable. If no priority is configured, smaller-numbered ports have higher priority.

Shielded RJ45 Port

True

Extend Mode Ports

Configurable

VLAN Mode Ports

Configurable

LED

• Power
• PoE Status of Each PoE Port
• Link/ACT of Each Ethernet Port
• PoE Max Status

Power Interfaces

AC Inlet

Physical Buttons

Reset Button

Watchdog Note

The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature.

Copper Speed and Distance

• Cat. 3 or higher cable: 100 meters at 10 Mbps
• Cat. 5 or higher cable: 100 meters at 100 Mbps
• Cat. 5e or higher cable: 100 meters at Gigabit
• Cat. 5e or higher cable: 250 meters at 10 Mbps

Copper Speed and Distance Note

250-meter transmission is available when the port speed is set at 10 Mbps in the software.

MAC Address Table

8192

Max Switching Capacity

36 Gbps

Max Forwarding Rate

26.78 Mpps

Jumbo Frame

15 KB

Packet Buffer

4 Mbit

Power Methods

AC

Power Input

100-240V~ 50/60Hz

Power Supply

200W

Max Power Excluding PoE

14W

Switching - 802.3 Protocols

• 802.3x Flow Control
• 802.3i 10BASE-T
• 802.3u 100BASE-TX
• 802.3ab 1000BASE-T
• 802.3z 1000BASE-X
• 802.3az Power Saving
• 802.3af PoE
• 802.3at PoE

802.1 Protocols

• 802.1p: LAN Layer 2 QoS/CoS
• 802.1q: VLAN Bridge Operation
• 802.1ab: LLDP/LLDP-MED

Port Management

• Port On/Off
• Port Negotiation Speed
• Port Trunk (Static Aggregation)
• Port Mirror
• Data Rate Limit
• Jumbo Frame Settings
• Storm Control
• Traffic Monitor
• MAC Address Management
• EEE (802.3az)

PoE Management

• PoE Priority
• PoE Watchdog On/Off
• PoE Watchdog Period/Packet Threshhold
• PoE Consumed Power
• PoE Standard
• Delayed PoE Delivery
• Total PoE Power Limit
• PoE Power Limit

Port Mirror Sessions

4

Port Trunk Groups

4

Max Port Num per Port Trunk Group

8

L2 Features

• IGMP Snooping
• Loop Prevention
• DHCP Snooping
• LLDP Config and Neighbors
• MTU VLAN
• Port-Based VLAN
• 802.1Q VLAN
• DSCP QoS
• 802.1p QoS
• Port-Based QoS

Grounding Methods

• Three-Prong Plug
• Grounding Point

EMS

IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 6kV

Environment

Operating Temperature: 0~40 ℃ (32~104 ℉)
Storage Temperature: -40~70℃ (-40~158 ℉)
Operating Humidity: 10~90% non-condensing
Storage Humidity: 10~95% non-condensing

Dimension

440×220×44 mm
17.32×8.66×1.73 inches

Product Weight

2753.8 g (97.14 oz.)

Casing Material

Metal

Installation

• Desktop
• Rackmount via Brackets (Brackets not included in the box)
