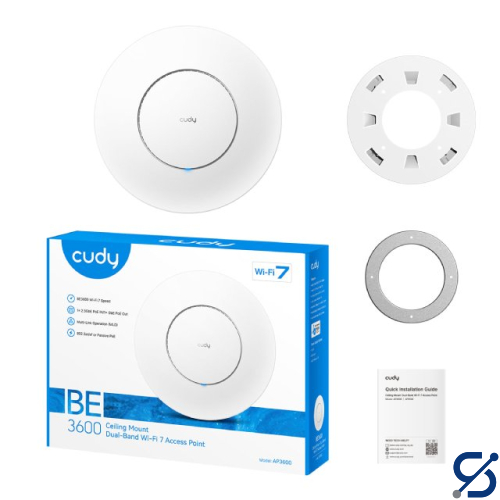

CUDY AP3600 Wi-Fi 7 Access Point

Specification

Value

Model Version

AP3600 1.0

CPU Details

2.0 GHz Quad-Core, ARM Cortex-A7

Flash/ROM

128 MB (1 Gbit) NAND

DDR/RAM

512 MB (4 Gbit) DDR3L

5 GHz Wi-Fi Speed

2882 Mbps

2.4 GHz Wi-Fi Speed

688 Mbps

5 GHz Wi-Fi Streams

2T2R (2×2 MIMO)

2.4 GHz Wi-Fi Streams

2T2R (2×2 MIMO)

Wi-Fi Antennas

4× Internal

FEM or PA/LNA

• 5 GHz: 2× Internal
• 2.4 GHz: 2× Internal

Beamforming

True

Range Performance

Max: 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.

Wall Performance

Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

2.5G RJ45 Ports

1

Gigabit RJ45 Ports

1

Ethernet Notes

Accepts PoE powering

LED

System

Physical Buttons

Reset Button

Power Input

• PoE via Ethernet Port
• DC Jack

Power Methods

• DC
• Passive PoE
• 802.3at/af PoE

Power Input

• DC: 12V⎓1A
• Passive PoE: 48-57V

Max Power Consumption (W)

10 W

Reliability - Advanced

Hardware Watchdog

Reliability - EMC

ESD: Contact: 4kV; Air: 8kV

Environment

• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing

Certifications

FCC, CE

Installation

• Wall-mount
• Ceiling-mount

Dimension

231.9×231.9×57.1 mm
9.13×9.13×2.25 inches

Product Weight

435.0 g (15.34 oz.)
