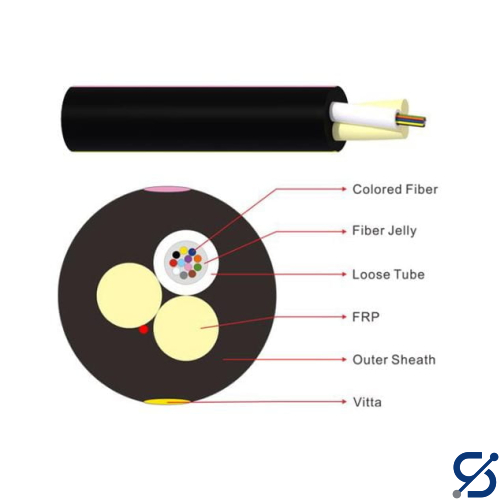

ASU Fiber optic cable SM 8 core dielectric
- Single-mode fiber, 8 cores, G652D
- FRP strength member
- Cable diameter: 2.2 mm
- Outer diameter: 8 mm
- HDPE sheath
- Length: 2 km/roll
Տեխնիկական բնութագիր
Specification
Value
Number of Cores
8
Fiber Type
Single Mode (SM) G652D
Cable Type
ASU (Aerial Self-supporting Unit)
Reinforcement
FRP strength member Ø2.2mm
Outer Jacket
HDPE sheath
Outer Jacket Color
Black
Cable Diameter
Ø 8.0mm
Tensile Strength
2.2 kN
Operating Temperature
-40°C ~ +70°C
Storage Temperature
-40°C ~ +70°C
Minimum Bending Radius
≥10× cable diameter
Flexibility During Movement
Good
Packaging
2000 m roll
Usage Environment
Outdoor (self-supporting aerial, dielectric)
Compliance Standards
ITU-T G.652D, IEC 60793, IEC 60794
|
