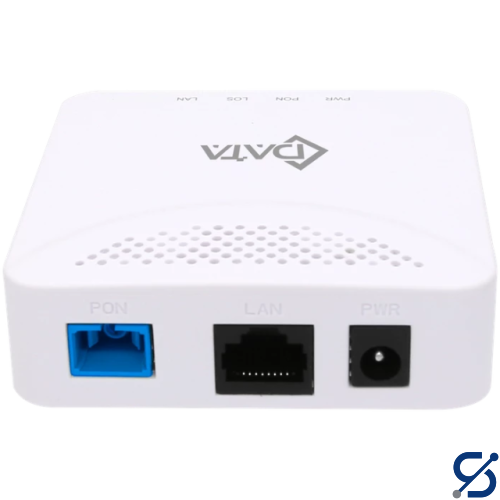

High-performance xPON ONU
-
1-Port SC/UPC
-
1-Port Gigabit RJ45
Տեխնիկական բնութագիր
Specification
Value
Brand
C-DATA
Model
FD511G-X
ONU Type
Dual-mode GPON/EPON
User Port (LAN)
1×10/100/1000 Mbps RJ45, Auto-negotiation
Power Supply Adapter
External 12V/0.5A DC
Power Consumption
<4.5 W
Operating Temperature
0℃ ~ 40℃
Operating Humidity
10% ~ 90% (Non-condensing)
Product Dimension
125 x 80 x 32 (mm)
Product Weight
0.125kg
LED Indicators
PWR, PON, LOS, INT, OPT, LAN
GPON Downstream / Upstream
2.488 Gbps / 1.244 Gbps
EPON Downstream / Upstream
1.25 Gbps / 1.25 Gbps
Transmit Wavelength
1310nm
Receive Wavelength
1490nm
Receiver Sensitivity
GPON: -28 dBm, EPON: -27 dBm
Saturated Power
GPON: -8 dBm, EPON: -3 dBm
Transmitting Power
GPON: 0.5~5 dBm, EPON: 0~4 dBm
Management
WEB, TR069, Telnet, OAM/OMCI
|
