BDCOM PON SFP C +++

14 000,00 ֏
Առկա է
SKU
SP000004
- +

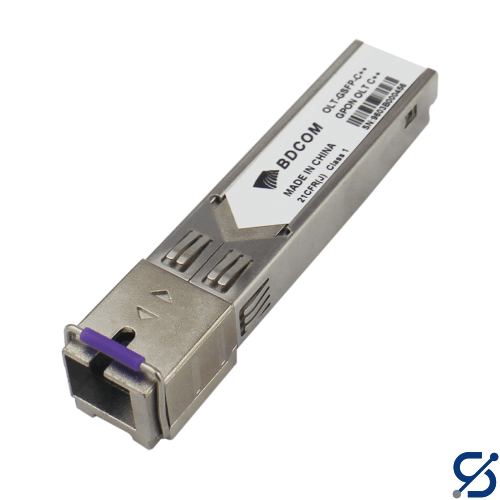

  • Product Type: GPON SFP Transceiver for OLT

  • Data Rate: Downstream 2.5 Gbps / Upstream 1.25 Gbps

  • Network Type: Passive Optical Network (PON), single fiber bidirectional

  • Transmission Distance: Up to 20 km

Տեխնիկական բնութագիր
Specification
Value
Brand
BDCOM
Product Type
GPON SFP Transceiver for OLT
Data Rate
Downstream: 2.5 Gbps, Upstream: 1.25 Gbps
Network Type
Passive Optical Network (PON), single fiber bidirectional
Transmission Distance
Up to 20 km
Standard Compliance
ITU-T G.984.2 GPON OLT C+
Application
Single-fiber bidirectional GPON OLT systems
Interface
SFP module, SC connector, Digital Diagnostic Monitoring (DDM)
Wavelength
TX: 1490 nm, RX: 1310 nm
Output Power
Up to +7 dBm
Receiver Sensitivity
Up to -30 dBm
Operating Voltage
+3.3 V
Operating Temperature
0 ~ 70°C
RoHS Compliance
RoHS-6
Special Features
Hot-pluggable, single-fiber bidirectional transmission
