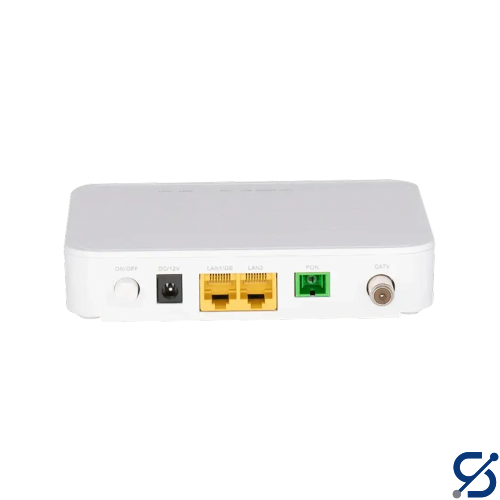

BDCOM GP1702-2FC-S

9 500,00 ֏
Առկա է
SKU
SP000172
- +

BDCOM GP1702-2FC-S

  • PON Port՝ 1 × XPON
  • LAN Port՝ 1 × Gigabit RJ45
Տեխնիկական բնութագիր
Specification
Value
Brand
BDCOM
Model
GP1702-2FC-S
PON Port
1 × XPON (EPON PX20+ / GPON Class B+)
Connector
SC/APC Single Mode
TX Optical Power
0 ~ +4 dBm
RX Sensitivity
≤ -27 dBm
Overload Optical Power
-3 dBm (EPON) / -8 dBm (GPON)
Transmission Distance
Up to 20 km
LAN Port
1 × Gigabit RJ45 (Auto-negotiation)
RF CATV Port
1 × RF (SC/APC)
Wi-Fi
Optional
VoIP Support
Optional
IPTV Support
Optional
Management Protocols
OMCI, TR069, Telnet, Web
Firewall
DDOS, ACL/MAC/URL Filtering
Rogue ONU Detection
Supported
Power Supply
DC 12V / 0.5A
Power Consumption
≤ 4 W
Operating Temperature
-10°C to +55°C
Dimensions
82 × 82 × 25 mm
Weight
85 g
