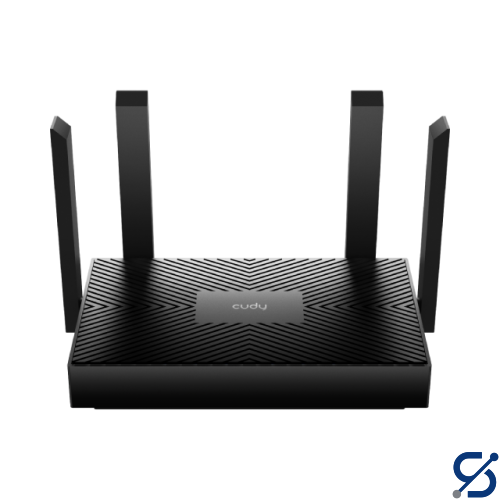

CUDY WR1500 Wi-Fi Mesh Router

Specification

Value

Model Version

WR1500 1.0

CPU Details

1 GHz CPU

Flash/ROM

16 MB (128 Mbit) NOR

DDR/RAM

128 MB (1 Gbit) DDR2

5 GHz Wi-Fi Speed

1201 Mbps

2.4 GHz Wi-Fi Speed

300 Mbps

5 GHz Wi-Fi Streams

2T2R (2×2 MIMO)

2.4 GHz Wi-Fi Streams

2T2R (2×2 MIMO)

Wi-Fi Antennas

4× Fixed

FEM or PA/LNA

• 5 GHz: 2× Internal
• 2.4 GHz: 2× Internal

Beamforming

True

Range Performance

Max: 170 m (558 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.

Wall Performance

Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')

Gigabit RJ45 Ports

4

Ethernet Notes

1× WAN port, the rest are LAN ports

LED

System

Physical Buttons

• WPS Button
• Reset Button

Power Input

DC Jack

Power Methods

DC

DC Input

12V 1A

Power Adapter

Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC

Max Power Consumption (W)

10W

Environment

• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing

Certifications

FCC, CE

Installation

• Desktop
• Wall-mount

Dimension

183.3×109×35 mm

Product Weight

• EU: 220 g
• ZH: 224.6 g
