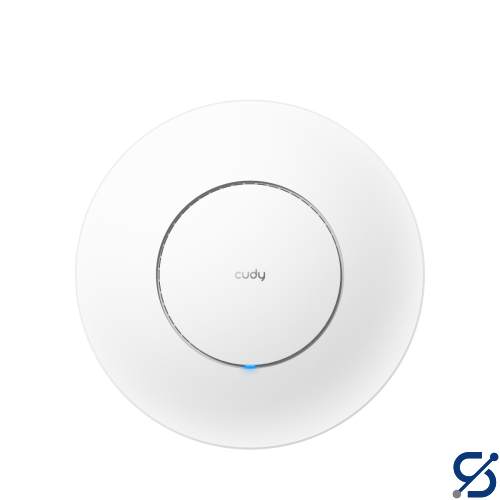

CUDY AP1300_P Wi-Fi Gigabit Access Point + PoE Adapter

Specification

Value

Model Version

AP1300_P Wall 1.0

CPU Details

880 MHz Dual-Core CPU

Flash/ROM

16 MB (128 Mbit) NOR

DDR/RAM

128 MB (1 Gbit) DDR3

5 GHz Wi-Fi Speed

867 Mbps

2.4 GHz Wi-Fi Speed

300 Mbps

5 GHz Wi-Fi Streams

2T2R (2×2 MIMO)

2.4 GHz Wi-Fi Streams

2T2R (2×2 MIMO)

Wi-Fi Antennas

2× Internal

FEM or PA/LNA

• 5 GHz: 2× Internal
• 2.4 GHz: 2× Internal

Beamforming

True

Range Performance

Max: 80 m (262 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.

Wall Performance

Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')

Gigabit RJ45 Ports

5

Ethernet Notes

Accepts PoE powering

LED

System

Physical Buttons

• Reset Button
• LED On/Off Button (Configurable to control LED and Wi-Fi)

Power Input

PoE via Ethernet Port

Power Methods

• Passive PoE
• 802.3at/af PoE

Passive PoE Input

48V

Max Power Consumption (W)

Max (PoE): 12 W
Max (DC): NA

Idle Power Consumption (W)

4 W

Reliability - Advanced

Hardware Watchdog

Reliability - EMC

ESD: Contact: 4kV; Air: 8kV

Environment

• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing

Certifications

FCC, CE

Installation

Wall-mount

Dimension

143×86×27.6 mm
5.63×3.39×1.09 inches

Product Weight

261.2 g (9.21 oz.)
