main product photo

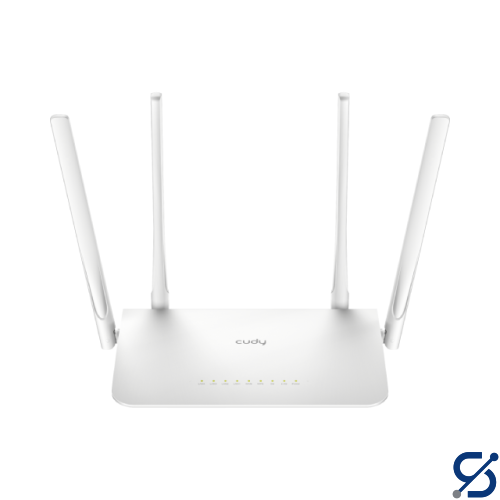

CUDY WR1300 Wi-Fi Mesh Router

Cudy Ապրանքանիշի Պաշտոնական Ներկայացուցիչը Հայաստանում
11 000,00 ֏
Առկա է
SKU
SP000141
- +
Դարձնել նախընտրելի
  • Wi-Fi: Dual-Band AC1200 (867 Mbps at 5 GHz + 300 Mbps at 2.4 GHz), 4× 5dBi fixed antennas
  • Ports: 5× Gigabit RJ45
  • Modes: Router / AP / Repeater / WISP
  • VPN: Zerotier, Wireguard, OpenVPN, IPSec, L2TP, PPTP
  • Security: WPA3, DNS over Cloudflare/Google/Quad9, IPv6, WPS
  • Features: DDNS, Wi-Fi Schedule, IPTV, WOL, Cudy Mesh, Cudy App
  • Management: TR069 / TR098 / TR111 / TR181
Տեխնիկական բնութագիր
Specification
Value
Model Version
WR1300 4.0
CPU Details
880 MHz Dual-Core, MIPS1004Kc
Memory/Storage (Flash/ROM)
16 MB (128 Mbit) NOR
Memory/Storage (DDR/RAM)
128 MB (1 Gbit) DDR3
Wireless (5 GHz Wi-Fi Speed)
867 Mbps
Wireless (2.4 GHz Wi-Fi Speed)
300 Mbps
Wireless (5 GHz Wi-Fi Streams)
2T2R (2×2 MIMO)
Wireless (2.4 GHz Wi-Fi Streams)
2T2R (2×2 MIMO)
Wi-Fi Antennas
4× Fixed
FEM or PA/LNA
  • 5 GHz: 2× Internal
  • 2.4 GHz: 2× Internal
Beamforming
True
Range Performance
Max: 170 m (558 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance
Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')
Interfaces (Gigabit RJ45 Ports)
5
Ethernet Notes
1× WAN port, the rest are LAN ports
LED
  • Power
  • 2.4 GHz Wi-Fi
  • 5 GHz Wi-Fi
  • WPS
  • Speed/Link/ACT of Ethernet Port
Physical Buttons
  • WPS Button
  • Reset Button
Power Input
DC Jack
Power Methods
DC
DC Input
12V 1A
Power Adapter
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
Max Power Consumption (W)
9.27W
Idle Power Consumption (W)
3.56W
Reliability (Environment)
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Certifications
FCC, CE
Mechanical (Installation)
  • Desktop
  • Wall-mount
Dimension
210×144×31 mm
Product Weight
314.2 g
