Specification
Value

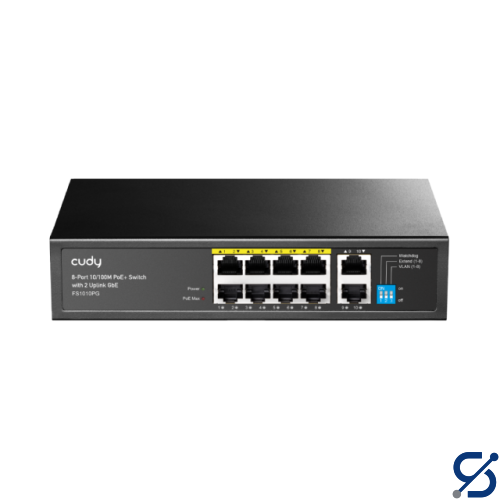

Model Version
FS1010P 3.0
Interfaces - 10/100 Mbps RJ45 Ports
10
Interfaces - 10/100 Mbps RJ45 PoE Ports
#1~#8
Interfaces - Max Power on a Single PoE Port
30W
Interfaces - PoE Port Notes
The PoE ports comply with IEEE 802.3at/af standards.
Interfaces - PoE Priority
Intelligent Power Management:
Automatically disconnect the lastly powered device when power exceeds budget.
Interfaces - Shielded RJ45 Port
True
Interfaces - Extend Mode Ports
#1~#8
Interfaces - VLAN Mode Ports
#1~#8
Interfaces - LED
- Power
- Link/ACT of Each Ethernet Port
Interfaces - Power Input
AC Inlet
Interfaces - Physical Buttons
- Extend On/Off
- VLAN On/Off
- PoE Watchdog On/Off
Interfaces - Watchdog Note
The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature.
Performance - Copper Speed and Distance
- Cat. 3 or higher cable: 100 meters at 10 Mbps
- Cat. 5 or higher cable: 100 meters at 100 Mbps
- Cat. 5e or higher cable: 250 meters at 10 Mbps
Performance - Copper Speed and Distance Note
250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
Performance - MAC Address Table
2048
Performance - Max Switching Capacity
2 Gbps
Performance - Max Forwarding Rate
1.488 Mpps
Performance - Jumbo Frame
2 KB
Performance - Packet Buffer
768 Kbit
Power - Power Methods
AC
Power - AC
100-240V~, 50/60Hz
Power - Power Supply
120W
Power - Max Power Excluding PoE
2W
Network - 802.3 Protocols
- 802.3i 10BASE-T
- 802.3u 100BASE-T
- 802.3af PoE
- 802.3at PoE
- 802.3x Flow Control
Switching - 802.3 Protocols
- 802.3i 10BASE-T
- 802.3u 100BASE-TX
- 802.3x Flow Control
- 802.3af PoE
- 802.3at PoE
Switching - PoE Management
Intelligent Power Management
Reliability - Grounding Methods
- Three-Prong Plug
- Grounding Point
Reliability - EMS
IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
Reliability - Environment
Operating Temperature: 0~40 ℃ (32~104 ℉)
Storage Temperature: -40~70℃ (-40~158 ℉)
Operating Humidity: 10~90% non-condensing
Storage Humidity: 10~95% non-condensing
Mechanical - Dimension
200×118×44 mm
Mechanical - Product Weight
Mechanical - Casing Material
Metal
Mechanical - Installation
- Desktop
- Rackmount via Brackets (Brackets not included in the box)
