Specification
Value
Model Version

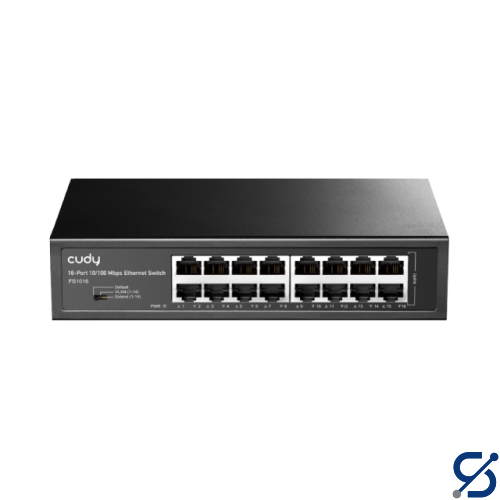

FS1016 1.0
Interfaces - 10/100 Mbps RJ45 Ports
16
Interfaces - Shielded RJ45 Port
True
Interfaces - Extend Mode Ports
#1~#14
Interfaces - VLAN Mode Ports
#1~#14
Interfaces - LED
- Power
- Link/ACT of Each Ethernet Port
Interfaces - Power Input
AC Inlet
Interfaces - Physical Buttons
VLAN/Default/Extend DIP Switch
Performance - Copper Speed and Distance
- Cat. 3 or higher cable: 100 meters at 10 Mbps
- Cat. 5 or higher cable: 100 meters at 100 Mbps
- Cat. 5e or higher cable: 250 meters at 10 Mbps
Performance - Copper Speed and Distance Note
250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
Performance - MAC Address Table
8192
Performance - Max Switching Capacity
3.2 Gbps
Performance - Max Forwarding Rate
2.38 Mpps
Performance - Jumbo Frame
2 KB
Performance - Packet Buffer
2 Mbit
Power - Basic Power Saving
True
Power - Power Methods
AC
Power - AC
90-260V~, 50/60Hz
Power - Max Power Consumption
2.0W
Power - Idle Power Consumption
0.8W
Switching - 802.3 Protocols
- 802.3i 10BASE-T
- 802.3u 100BASE-TX
- 802.3x Flow Control
Reliability - Grounding Methods
- Three-Prong Plug
- Grounding Point
Reliability - EMS
IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
Reliability - Environment
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Mechanical - Dimension
200×118×44 mm
7.87×4.65×1.73 inches
Mechanical - Product Weight
600 g (21.16 oz.)
Mechanical - Casing Material
Metal
Mechanical - Installation
- Desktop
- Rackmount via Brackets
