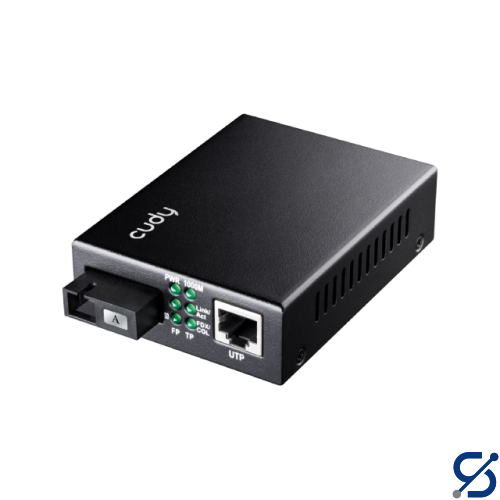

CUDY A+B Gigabit Ethernet Media Converter

Specification

Value

Model Version

MC100GSB-20AB 2.0

Interfaces (1.25G SC/UPC Slots)

1

Wavelength

• MC100GSB-20A: TX: 1310 nm; RX: 1550 nm
• MC100GSB-20B: TX: 1550 nm; RX: 1310 nm

Gigabit RJ45 Ports

1

LED

• PWR: Power on/off
• 1000M/100M: RJ45 link speed
• TP ACT: RJ45 status
• Fiber ACT: Fiber slot status
• FDX: full-duplex status

Power Input

DC Jack

Performance



Copper Speed and Distance

• Cat. 3 or higher cable: 100 meters at 10 Mbps
• Cat. 5 or higher cable: 100 meters at 100 Mbps
• Cat. 5e or higher cable: 100 meters at Gigabit

Optical Spec and Distance

Single-Mode: Up to 20 km

Jumbo Frame

16 KB

Power



Power Methods

DC

DC

5V⎓0.55A

Power Adapter

Input: 100-240V~, 50/60Hz
Output: 5V⎓0.55A

Max Power Consumption

1.3W

Idle Power Consumption

1W

Network



802.3 Protocols

• 802.3i 10BASE-T
• 802.3u 100BASE-T
• 802.3ab 1000BASE-T
• 802.3x Flow Control
• 802.3az Power Saving

Troubleshooting

• Far End Fault (FEF)
• Link Fault Pass Through (LFP)

Reliability



Environment

Operating Temperature: 0~50 ℃ (32~122 ℉)
Storage Temperature: -40~70 ℃ (-40~158 ℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

Mechanical



Dimension

70×94×26 mm
2.76×3.7×1.02 inches

Casing Material

Metal

Installation

• Desktop
• Chassis
